Equipped with JASPER LAKE 11.6 type 2in1! "BMAX Y11 Plus"

Equipped with Celeron N5100/8GB/256GB and weighs 1kg 11.6 type 2in1!

　The brand introduced this time is BMAX.It is a brand that is exactly what people who know, for example, when looking at Amazon, it seems that it sells laptops, mini -PCs, tablets, etc.Both have a simple design, and the price is quite cheap when compared to major manufacturers of the same class.It looks pretty interesting.

　The 2in1 -shaped "Y11 Plus" arrived.11.It has a characteristic of 2in1 and 1kg weighing with a 6 -inch full metal.Although there is "Y11" as a model number, it is important to note that the housing is almost the same, but the generation of the processor is old and the panel performance (color range) is different.The main specifications of Y11 Plus are as follows.

BMAX「Y11 Plus」の仕様
プロセッサ	Celeron N5100(4コア4スレッド、1.1-2.8GHz、キャッシュ 4MB、TDP 6W)
メモリ	8GB(LPDDR4)
ストレージ	SSD 256GB
OS	Windows 10 Pro(64bit)/21H1
ディスプレイ	11.6型IPS式1,920×1,080ドット、光沢、10点タッチ対応
グラフィックス	Intel UHD Graphics、Micro HDMI/Type-C
ネットワーク	Wi-Fi 11ac対応、Bluetooth 4.2
インターフェイス	USB Type-C、Micro USB、SDカードスロット、Webカメラ、3.5mmジャック
バッテリ/駆動時間	7,000mAh/最大10時間
サイズ/重量	274×187×13mm(幅×奥行き×高さ)/約1kg
カラーバリエーション	スペースグレイ
税込価格	3万8,904円@Banggood

　The processor is Jasper Lake's Celeron N5100. The clock is 1 with 4 core 4 threads.1-2.8GHz.Cash is 4MB and TDP is 6W.As I wrote earlier, the Y11 is internally different, and the processor itself is different from the Gemini Lake Celeron N4100, which is later Gemini Lake Refresh's Celeron N4120.

　The memory is LPDDR4 8GB.In PCMark 10 System Information, it was 8GB x 1.The storage is SSD 256GB.The OS is a 64 -bit version of Windows 10 Pro.The point is high in this class.Since it was 21H1, Windows Update was applied and evaluated in this range.In addition, this unit can be updated to Windows 11 as you can see from the specifications.

　The graphics is built -in processor, Intel UHD Graphics.Equipped with Micro HDMI and USB Type-C for external output.The display is glossy 11.6 -inch IPS type 1,920 x 1,080 dots.It can be turned 360 degrees with 10 -point touch and can be transformed into tent/stand/tablet mode.The panel has also improved from 45%to 72%of the color gamut NTSC of Y11.

　Network is Wi-Fi 11ac compatible, Bluetooth 4.2.There is no wired LAN.The interface is Type-C, Micro USB, SD card slot, web camera, 3.5mm jack.It may be a bit difficult to use because there is no USB Type-A.USB Type-C also supports PD and DisplayPort (operation has been confirmed).

　Built -in 7,000mAh battery and can drive up to 10 hours.The color variations are only space gray.The keyboard is US layout only.The size is 274 x 187 x 13mm (width x depth x height) and weighs about 1 kg.The skill is acquired and can be used in Japan.

本体正面。Webカメラがパネル中央上ではなく右下にある。フチは太過ぎず細過ぎず斜め後ろから。フルメタルのスペースグレイでなかなかカッコいい左側面。3.5mmジャック、音量±ボタン、電源ボタン、小さい穴がマイクL、スピーカーL右側面。電源入力、Type-C、Micro HDMI、マイクR、Micro USB、SDカードスロット、スピーカーRキーボードはテンキーなしのUS配列。キートップがグレイに刻印が白なので見にくい(青のファンクションは更に見にくい)。タッチパッドはボタンのないプレート型キーピッチは実測で約17mm(+α)。JIS配列でこのサイズだと確実に何処かが破綻するが、US配列なので綺麗に収まっている底面は前後に4つのゴム足。技適マークもある。右上にある小さいパネルはSSD用(M.2/2242サイズ)で交換可能。交換してChrome OSのCloud Readyを入れるのも面白いかもしれない横から。3.5mmジャックのサイズから分かるようにかなりスリム重量は実測で1,063gACアダプタのサイズ約70×42×30mm(幅×奥行き×高さ、突起物含まず)、重量142g、出力12V/2A。各国用のプラグが付属するテントモードスタンドモードタブレットモード

　The housing is full metal (aluminum alloy) and has a good texture.In addition, as you can see in the photo from the side, it is quite slim.The weight is about 1,063g and about 1 kg, so it can be lifted easily with one hand.The housing is 2in1, which is working hard for the price.

　The front is not too thick and not too thin.The web camera is on the lower right, not on the center of the panel.3 on the left side.5mm jack, volume ± button, power button, small hole are Mike L, speaker L.Power input, USB Type-C, Micro HDMI, Micro USB, microphone R, SD card slot, and speaker R on the right side.

　On the back, there are four rubber legs on the back and rear.Open the small panel in the foreground and SSD (m).2/2242 size) and can be replaced.Because it can be easily replaced, it seems to be fun if you install it for each SSD, such as Cloud Ready and Linux of Chrome OS, replaced and use.

　The attached AC adapter is about 70 x 42 x 30mm (width x depth x height, not projections), weighs 142g, output 12V/2A.A plug for each country is included.USB Type-C is compatible with PD/DisplayPort.When I tried it on a mobile display with a keyboard I introduced earlier, I found that one USB Type-C/Type-C cable also functioned power/display and keyboard/touchpad, as if there were two laptops.became.

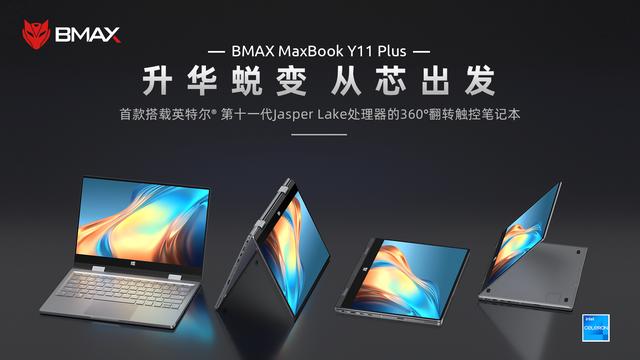

　11.The 6 -inch display rotates 360 degrees and can be transformed into a tent/stand/tablet mode.The brightness is reasonable.The contrast, color development, and viewing angle are also very good in this class.10 -point touch can be operated without any problems.

　When the characteristics are measured using I1 Display Pro, the maximum brightness is 233cd/square m.After all it is not very bright.The brightness 120cd/square M, which is said to be suitable for watching photos, is 142 cd/m2 for the maximum, and 118 cd/m2 for -4.Therefore, measured by the former.Black brightness is 0.206cd/square M.The luminity of the linearity increases the difference in R/G/B.Before the correction, it felt pretty pale.

測定結果1/白色点と黒色輝度測定結果2/R・G・Bのリニアリティ

　The keyboard is a US line without a numeric keypad.The key pitch is about 17mm (+α).Normally, if the JIS is placed in this size, the line will go bankrupt, but since it is a US sequence, it fits neatly.It is time to ship only in the space key (no conversion/conversion key) based on this, even for domestic use.However, the key top is gray and the stamp is white (the function key is blue), and it is hard to see anyway if it is a slightly dark place.This is a point that I want to improve, such as changing the color scheme.

　The touchpad is a plate type without buttons.Although it was not possible to secure much area in footprint, it was practical.

　No noise or vibration.The fever has a heat on the right half when loading a load such as a benchmark test.It's just a tolerance that doesn't get hot enough to be worried.The sound has a speaker on the left and right sides, and although the sound escapes outside, there is enough stereo feeling.The sound quality is the kamaboko range and the power is one step later, but is this class more severe?

　When I tried the web camera, the location was at the bottom right of the panel, so it became a low angle and the reflection was bad.In addition, the image quality is not so good that it is not so good, and it is better to think that it cannot be used.It's a bit disappointing here because it's good to make it as a whole.
